MTX 400-WATT RMS 4-CHANNEL CLASS A/B AMPLIFIER

Regular price: $299.99 CAD
Regular price
Sale price: $299.99 CAD
Unit price: per

Product variants

Quantity

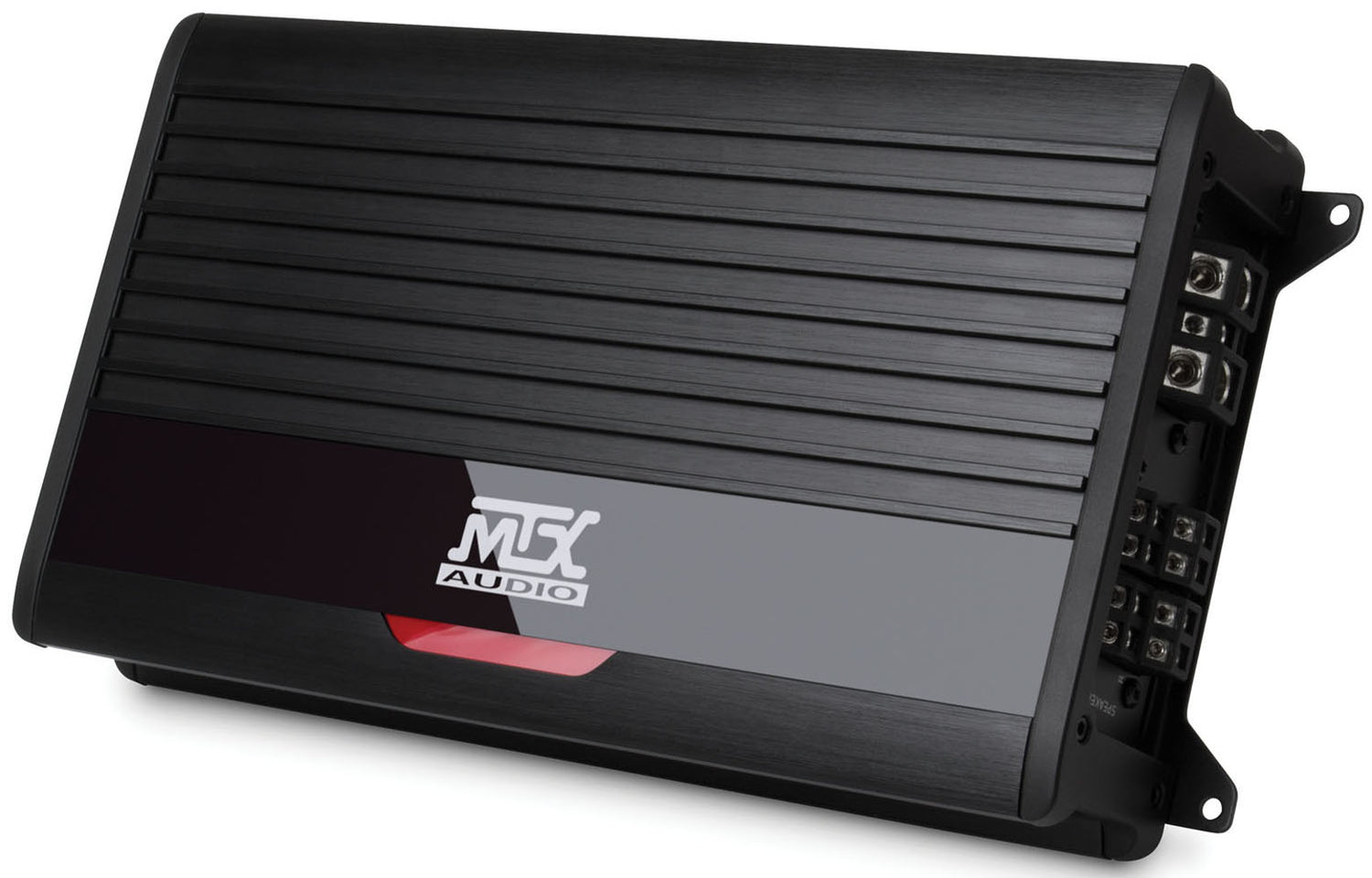

400-WATT RMS 4-CHANNEL CLASS A/B AMPLIFIER

Feel the Thunder

MTX THUNDER..A name synonymous with car audio for over 20 years has become known for power, performance, and reliability. The THUNDER line of amplifiers has seen numerous technological advancements throughout its life and continues to be one of the most recognized and sought after products in the car audio world today.

The MTX THUNDER75.4 4-channel amplifier is the product of many of those advancements. It delivers the music to your speakers creating a true “Concert Level Sound” without losing any fidelity or quality.

Features

Compact Design - The small footprint chassis allows for installation in space challenged vehicles
Surface Mount PCB Design - Decreases chassis size, improves layout efficiency and increases vibration resistance without sacrificing performance or sound.
Variable Butterworth Crossover - a 12dB/Oct crossover that allows you to set the frequency your speakers will play down or up to
Triple Protection Circuitry - Thermal, DC Offset, and Short Circuit Protection circuitry ensures the amplifier will protect itself in the event of a problem
Extruded Aluminum Heat Sink - The custom heat sink design maximizes heat transfer away from the circuitry protecting the amplifier
Noise Free Design
MOSFET Power Supply

Specifications

Description	4-Channel
4Ω RMS Power Output	75W x 4 Channels
Signal to Noise Ratio	80dB
2Ω RMS Power Output	100W x 4 Channels
4Ω Bridged	175W x 2 Channels
1Ω RMS Power Output	NA
Topology	Class A/B
THD	<1%
Frequency Response	15Hz - 25kHz
Crossover	Variable LPF 50Hz to 750Hz (Rear), Variable HPF 10Hz-200Hz (Front), Variable HPF 50Hz-750Hz (Rear), 12dB/Oct
Max Sensitivity	200mV
Maximum Input Signal	5V
Height	6.3"
Width	12.13"
Depth	2.25"
